Leírás
Features:
●AI Image Enhancement | ●0 Lux |
●Black and White Sensor | ●High Resolution |
Bullet Points:
1. AI image enhancement improves image quality, maximizing video quality in any environment. It can replace some of the scenarios where infrared radiation is used to generate images, expanding the range of analog camera applications.
2. The first No-Light night vision analog camera in FPV market, capable of capturing images even in 0 Lux conditions. Compared to traditional color cameras, its sensitivity is much improved, allowing for better capture of object shapes and contours.
3. Supports WDR, 100% satisfying the pursuit of detailed shooting in dark environments.
4. The Infra camera supports 16:9 and 4:3 images, providing flexibility to adapt to different preferences and scenarios.
5. Designed with 120° FOV, Infra Camera offers pilots a natural visual experience during flight, restoring the authenticity of the scenes.
6. Featuring a metal case, the lightweight design improves durability and heat dissipation.
Specification

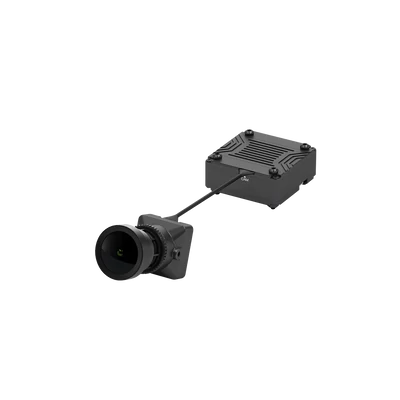

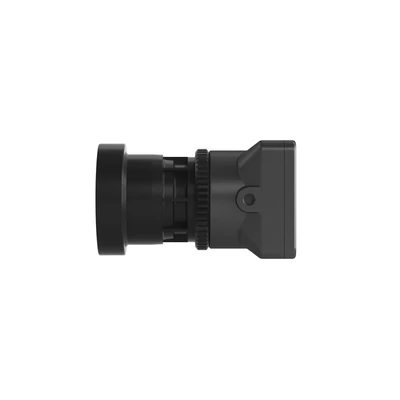

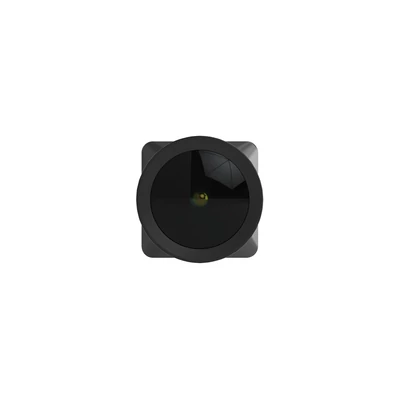

Model | Infra Camera |
lmage sensor | Black&White Sensor |
Horizontal Resolution | 1500TVL |
FOV | 120° |
Min.lllumination | 0 Lux |
WDR | Super WDR |
LENS | M16/F1.0/2.8mm |
Frame Rate | 50/60fps |
Power Consumption | <1.5W |
Supply Voltage | 9V~24V |
Output | PAL |
Analog Interface | CVBS |
HD Interface | MIPI-CSI(Walksnail Avatar) |
Latency | Average Latency 20ms |
lmage Quality | Allmage Enhancement |
Paraméterek
Beépítési méret | Mini (21mm) |
TV rendszer | PAL |
Csomag tartalma
1 x Camera
1 X AI Box
1 x 3PIN Power Cable
1 x Quick Guide
4 x M2*5*0.5mm Gasket
3 x M2*4 Screws
4 x M2*5 Screws
4 x M2*6 Screws
