Leírás

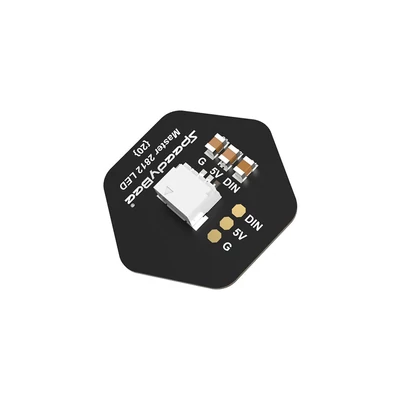

Ways to connect

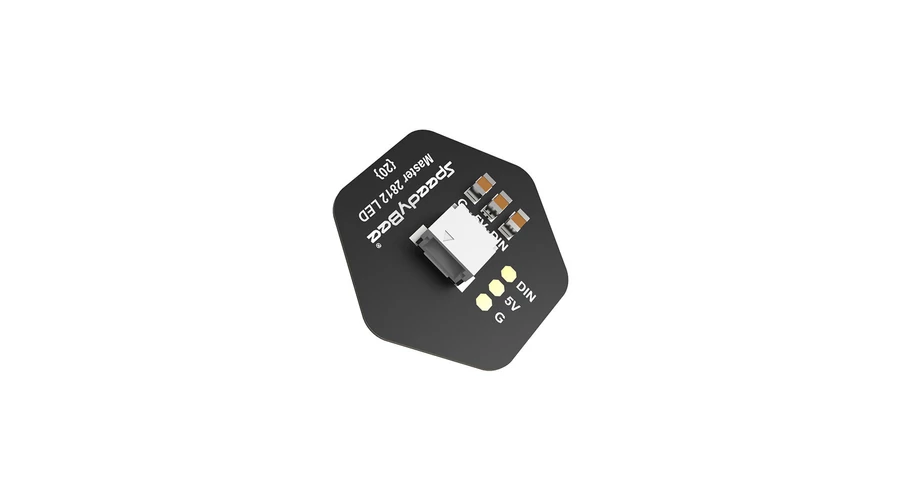

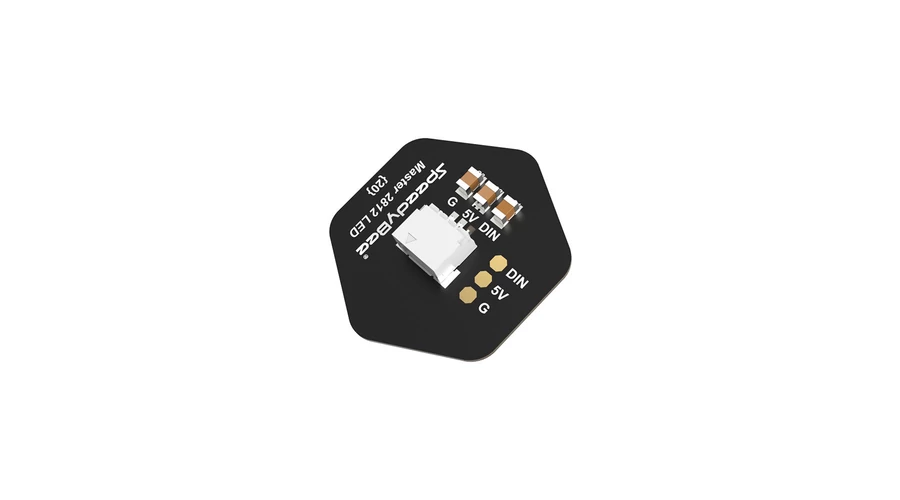

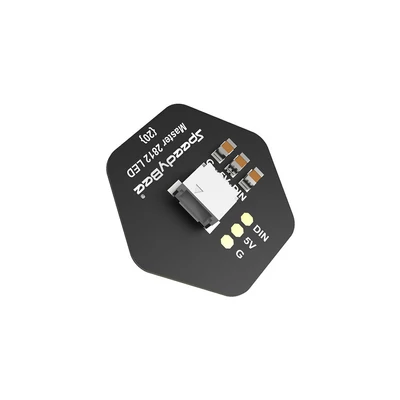

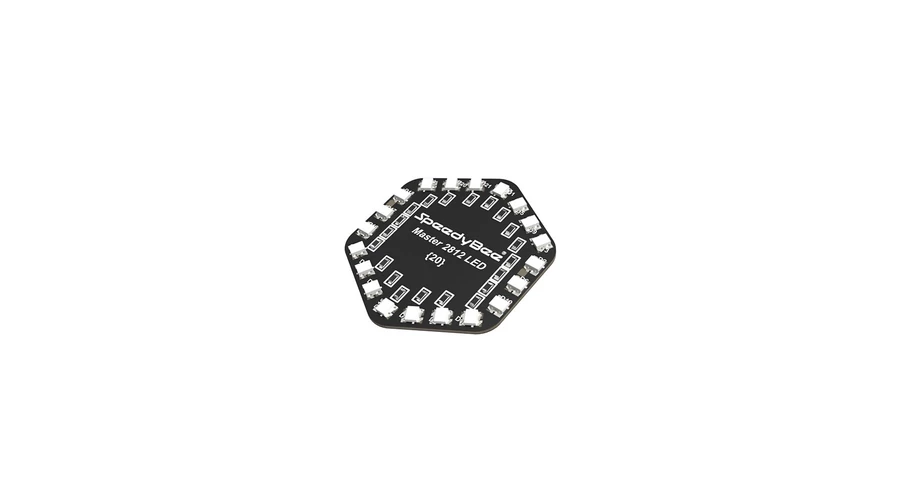

Connect LED Strip
via connector
Plugging connector directly
Soldering cable
with FC
Support soldering and free-soldering
Two ways to connectto FC
Free shock proof foam included,
protecting from ESC
Dimension and Weight
LampBeadsElectricalCharacteristics
AbsoluteMaximumRatings（Temperature=25℃）
| Specifications | Symbol | Range | Unit |
| Logic power voltag | VDD | 3.0~7.5 | V |
| R/G/B outport withstand voltag | Vds | 9 | V |
| Logic input voltage | VI1 | 0.5~5.5 | V |
| R/G/B output voltage | Iout | 12 | mA |
| Working temperature | Topr | -40~+85 | ℃ |
| Storage temperature | Tstg | -50~+150 | ℃ |
| ESD withstand voltage | Vesd | 5k | V |
*Notice:Pulsewidth≤0.1ms,dutyratio≤1/10
ElectricalOpticalCharacteristics（Temperature=25℃）
| Specifications | Symbol | Min | Typ | Max | Unit |
| Chip working voltage | VDD | - | 5 | 7.5 | V |
| R/G/B outport withstand voltage | Vds | - | - | 9 | V |
| R/G/B output drive current | Iou | - | 12 | - | V |
| High level input voltage | VIH | 0.7Vdd | - | - | mA |
| Low level input voltage | VIL | - | - | 0.3Vdd | V |
| PWM frequenc | FPWM | - | 4 | - | KHZ |
| Static power consumption | ldd | - | 0.3 | - | mA |
Paraméterek
| Méretek (Hosszúság * szélesség * magasság) | 21x19x4,7 mm |
| LED vezérlése | repülésvezérlő (FC) |
