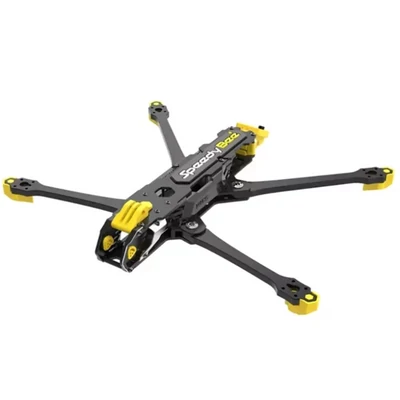

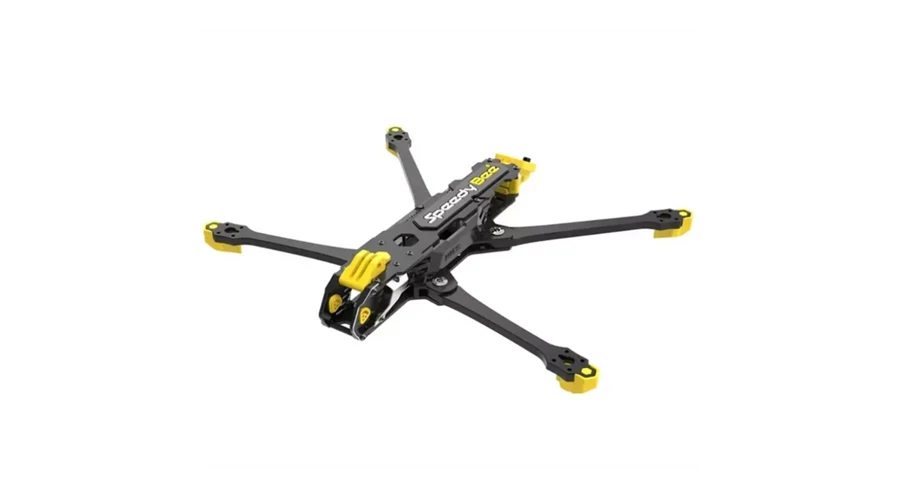

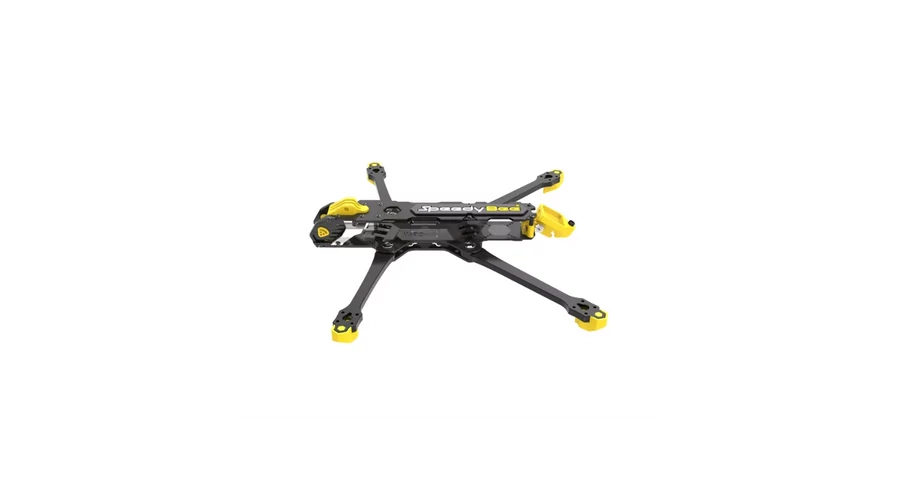

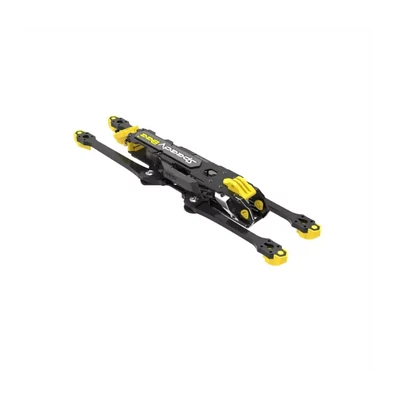

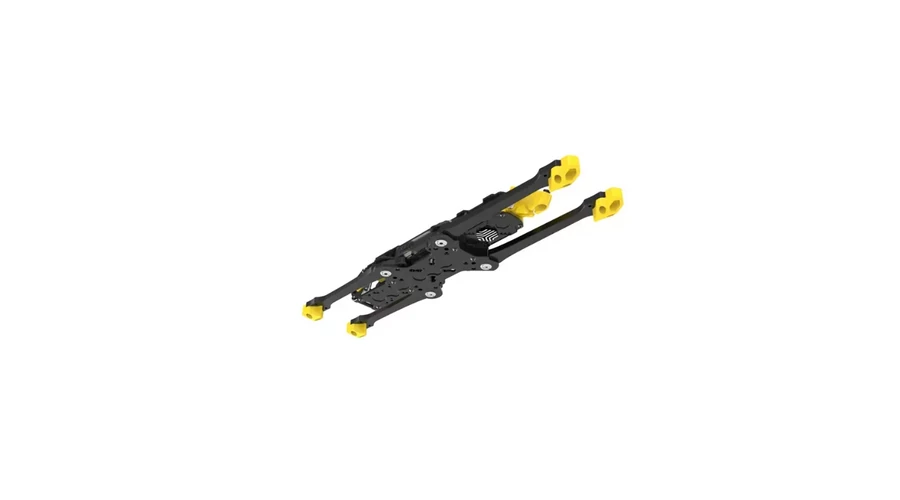

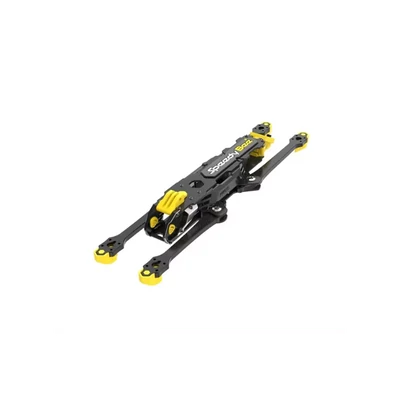

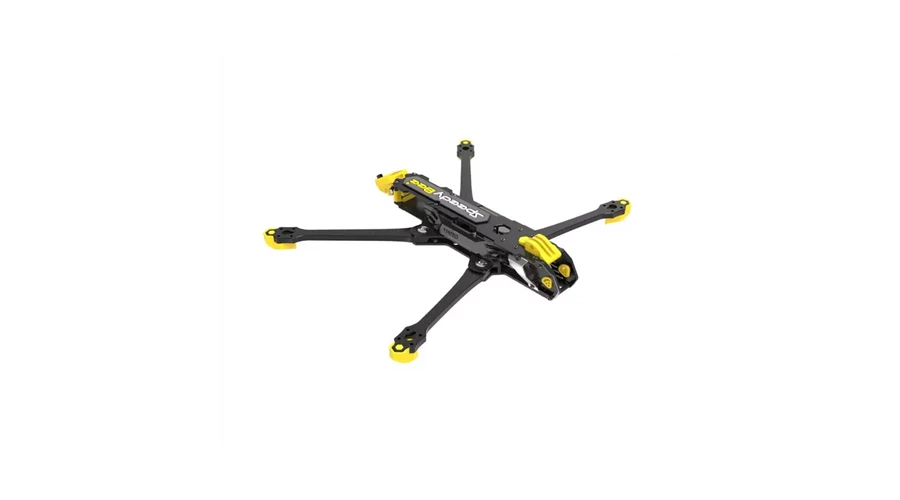

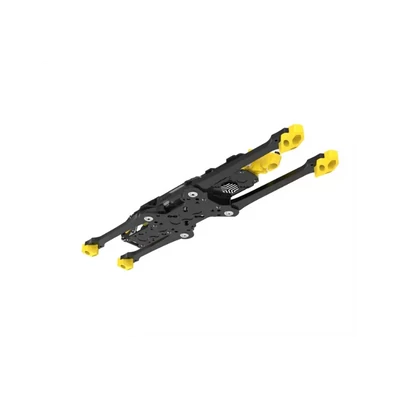

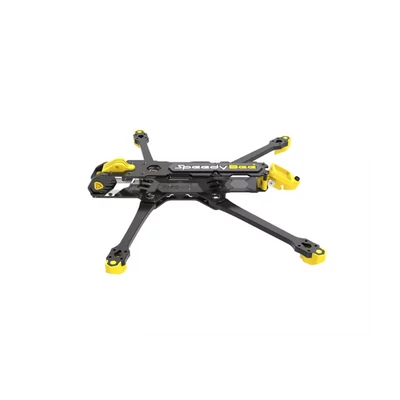

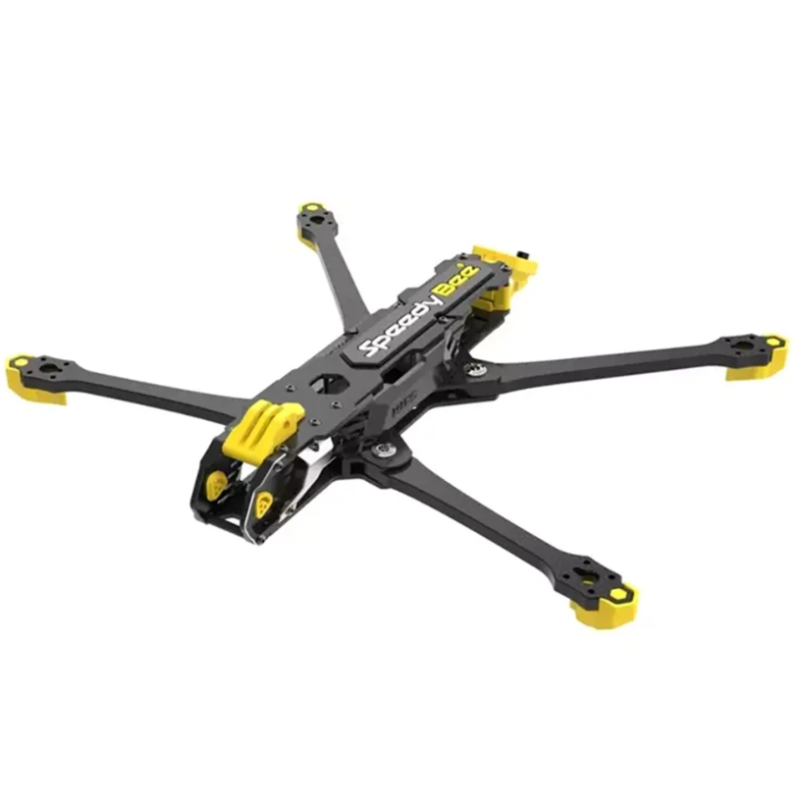

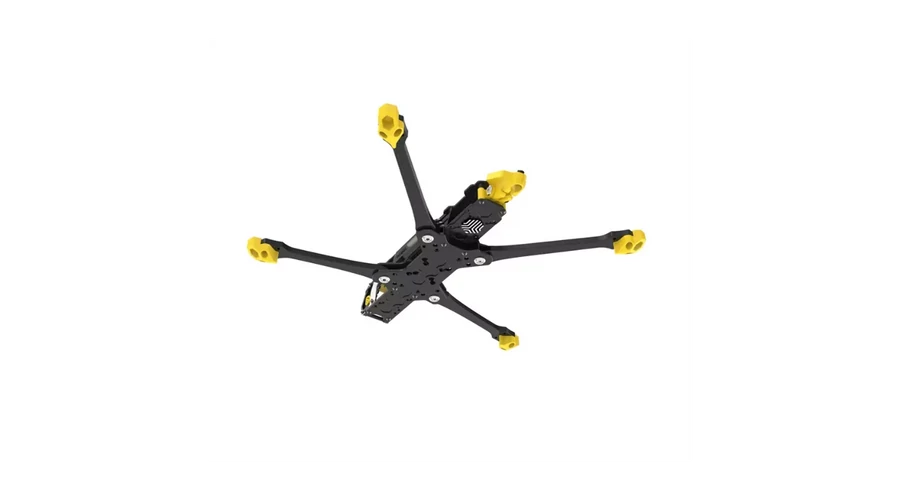

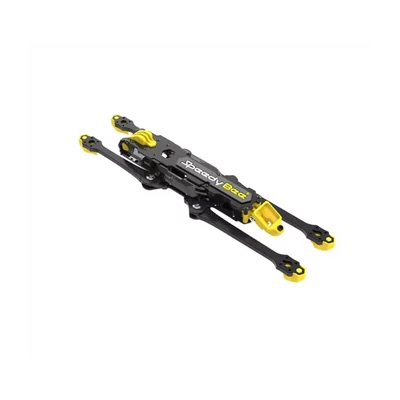

SpeedyBee's Mario 8 could be one of the best-designed foldable Long Range frames, especially given its size and build quality.

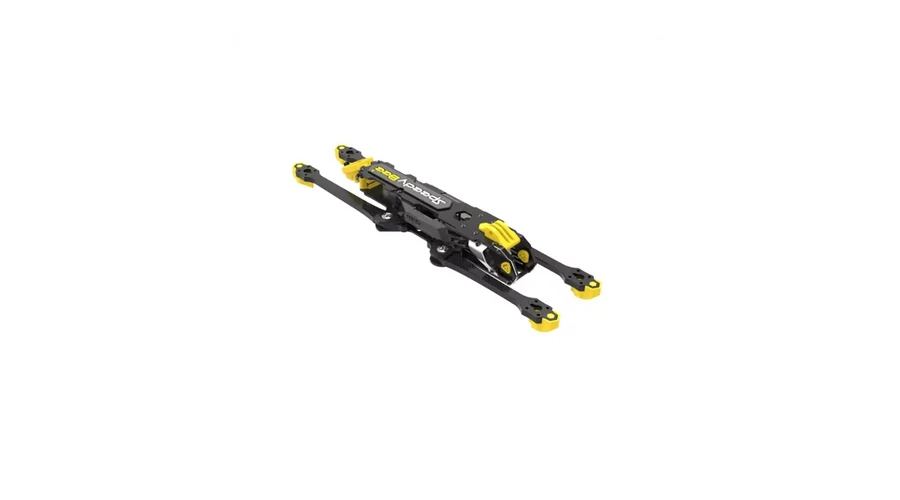

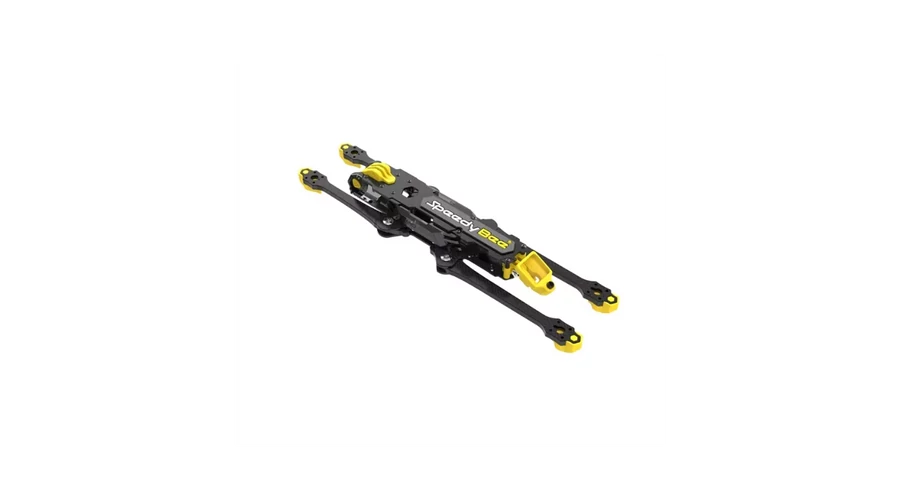

Designed for long-range FPV flight, this 8" stands out for its extended flight range, stability and portability. The Mario 8 fold is O3 compatible.
Specifications

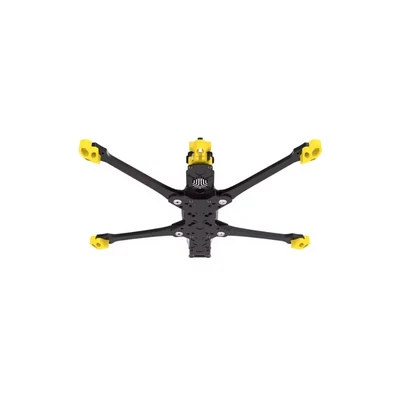

- Wheelbase : 360mm Front:305mm Rear:272mm
- Weight MARIO Fold 8 DC O3 Kit 695g
- Top plate thickness 2.5mm(T300 3K)
- Middle plate thickness 2.5mm(T300 3K)
- Bottom plate thickness 3mm(T300 3K)
- Arm thickness 7mm(T300 3K)
- Camera Screw 7mm

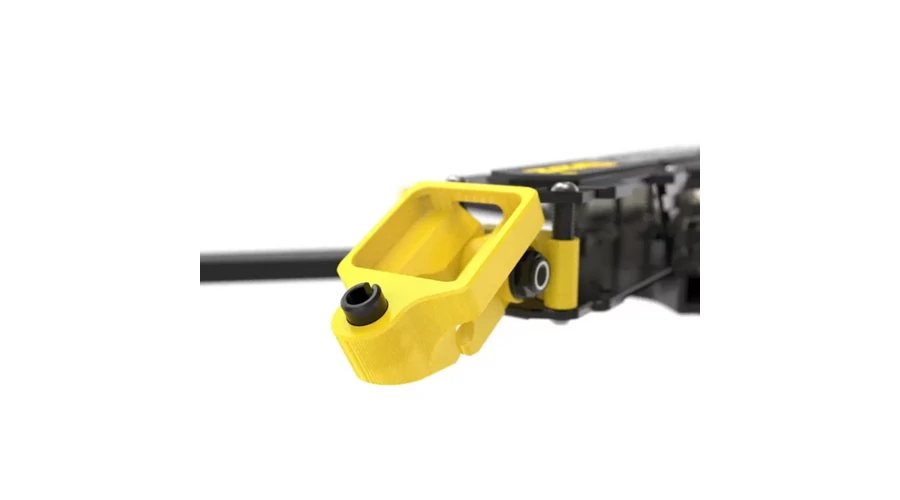

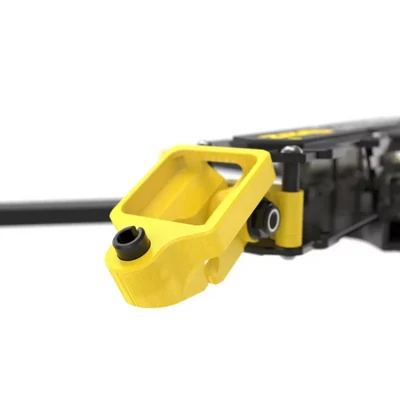

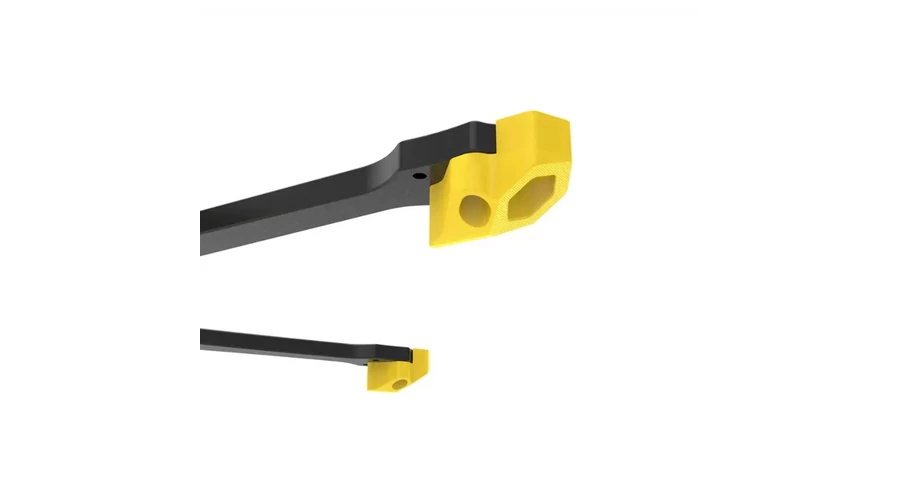

- 3D printed par Yellow TPU
- Stack side plate PC

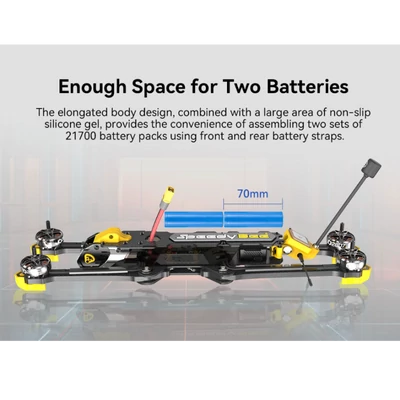

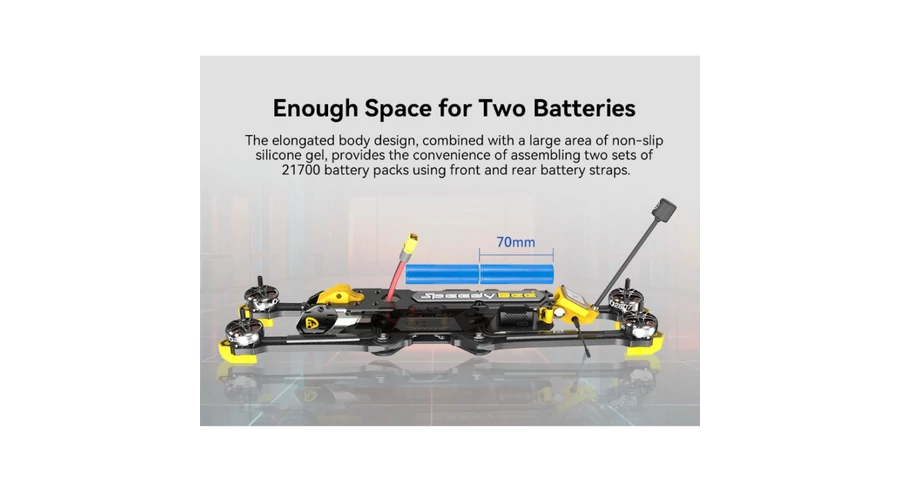

- Battery Anti-skid Mat Silicone Resin
- Motor circlip spacing 9mm
- Propellers 7-8Inch
- Mounting holes for motors 19mm
- FC mounting hole 30.5x30.5(M3) & 20x20mm (M3)

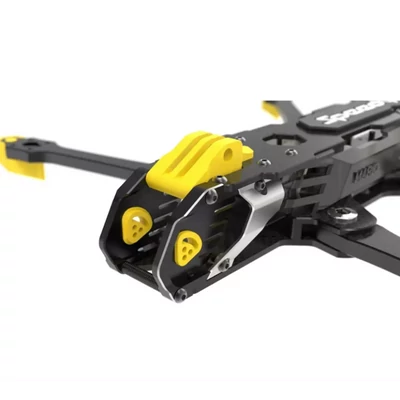

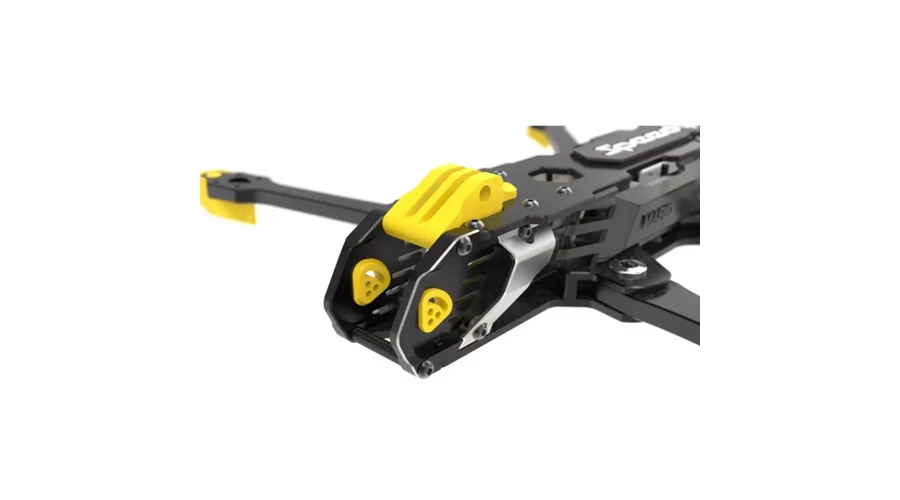

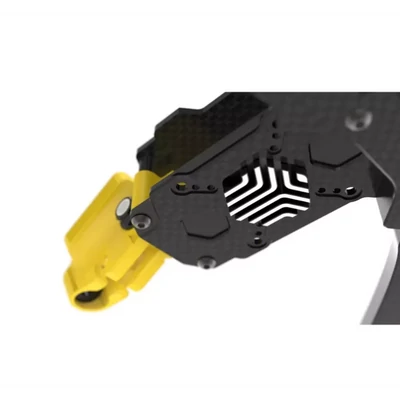

- Drone head 7075 CNC aluminum alloy

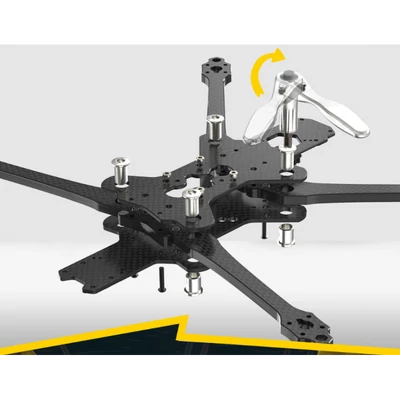

- Aluminum standoff 7075 M3*22mm (5mm&4.6mm)
- Internal installation height 22-31mm

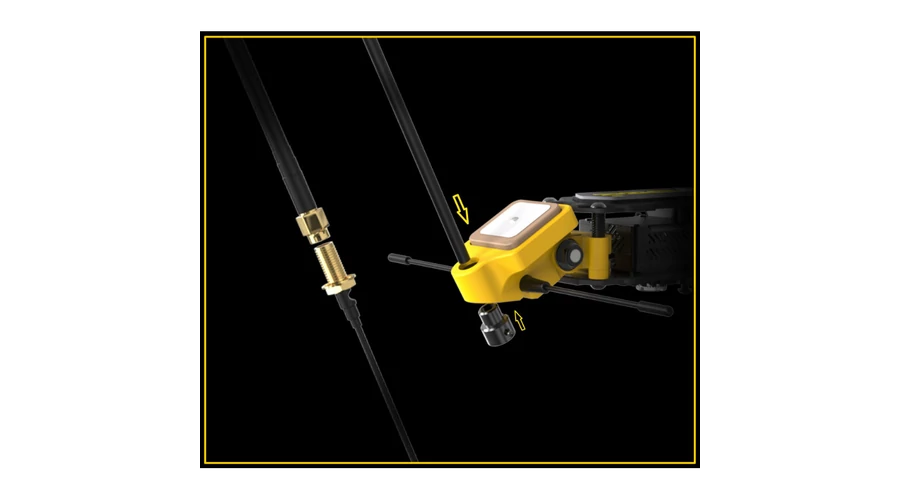

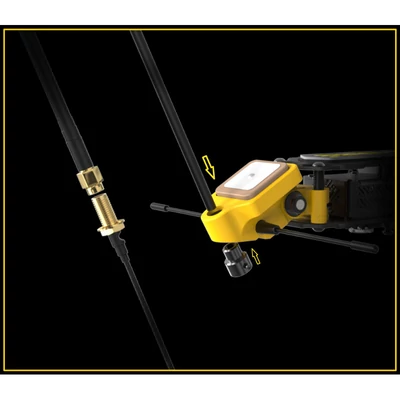

- Antenna Mounting SMA OR O3 Ant CNC GPS:25*25*8mm
Paraméterek
| Beépítési méret | 20x20/30,5x30,5 mm |
| stílus | Long Range |
| Súly | 695 g |
