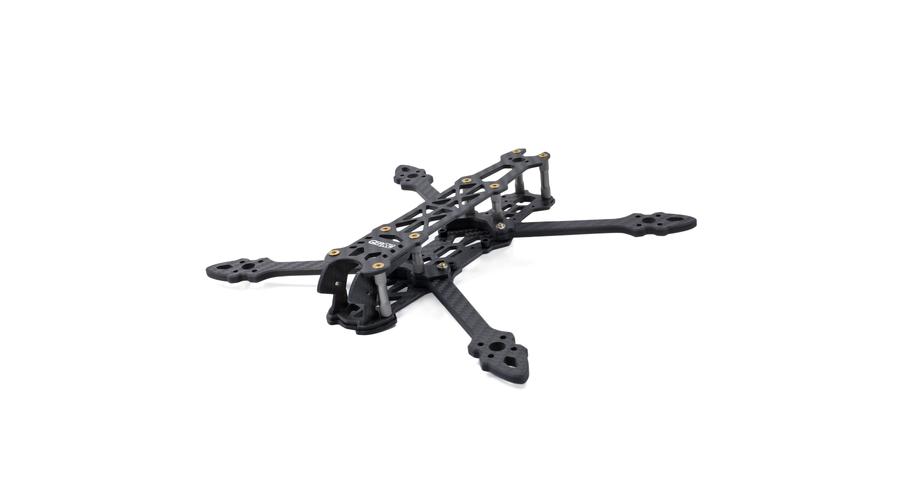

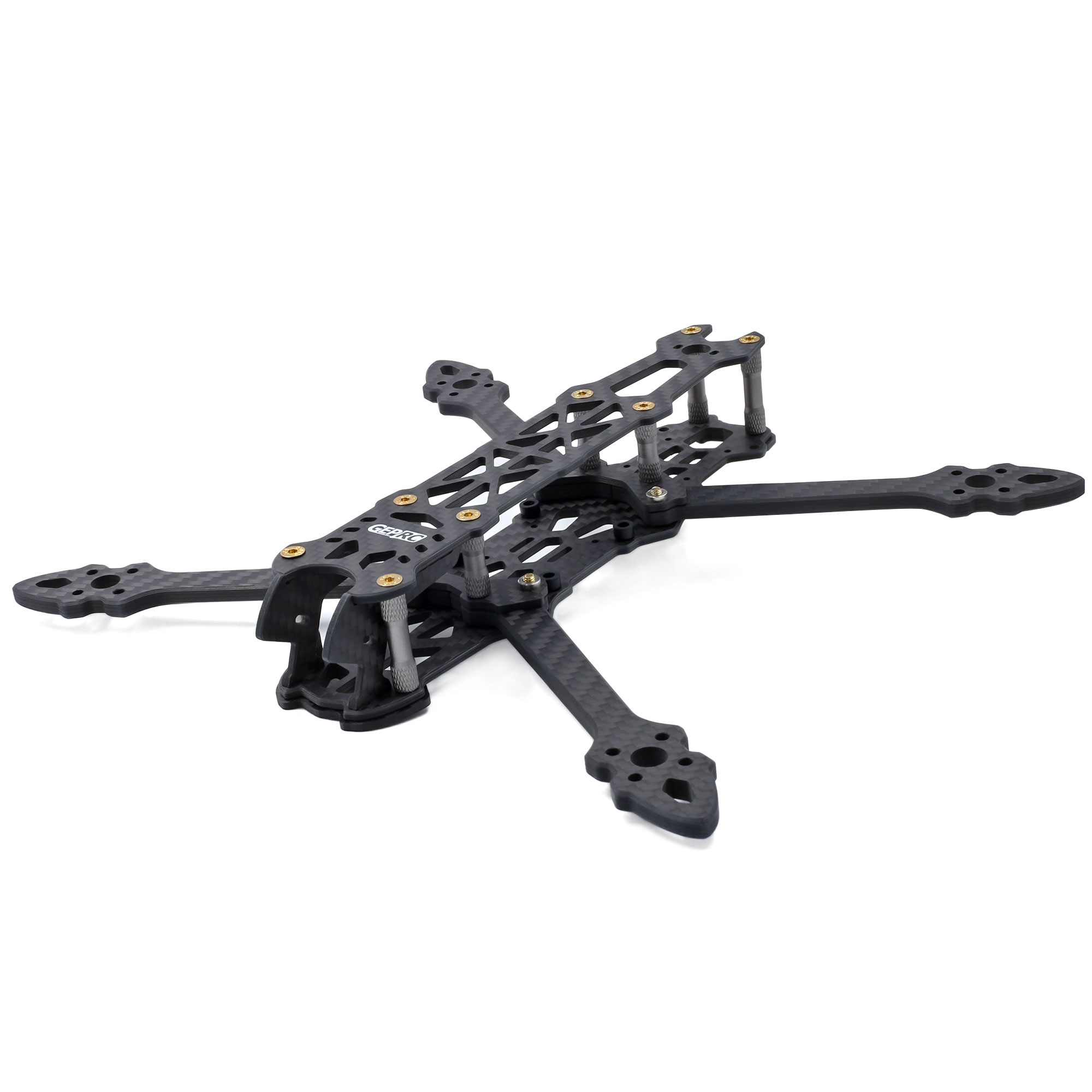

MARK4 6" frame
Ár:
23.590 Ft
| Gyártó: |
|
| Cikkszám: | GEP-Mark4 6 |
| Egységár: | 23.590,00 Ft/ |
|
|
|
|
Summary: |
|
Leírás
Specifications：
- Brand name：GEPRC
- Item name：Mark 4-6
- Frame type：H type
- Propeller : 6inch
- Motor to motor：260mm
- Size：162*203mm
- Weight：111g
- Arms plate : 5mm
- Side plate : 2.5mm
- Top plate : 2.5mm
- Bottom plate : 2.5mm
- Protect plate : 2mm
Includes：
- 4 x 5mm 5inch Arms plate
- 2 x 2.5mm side plate
- 1 x 2.5mm top plate
- 1 x 2.5mm Bottom plate
- 2 x 2mm Bumpers plate
- 2 x 2mm Reinforce plate
- 1 x Lipo silicone pad
Hardware：
- 8 x M3*25mm Alu6061 Srandoff New Titanium color
- 4 x M3*18mm Alu6061 Srandoff New Titanium color
- 8 x M3*8 YFS Flat Screw
- 4 x M3*10 YFS Flat Screw
- 4 x M3*12 YFS Button Screw
- 4 x M3*14 YFS Button Screw
- 4 x M3*20 YFS Button Screw
- 4 x M3 Flight control silicone
- 4 x M3 Nylon nut
- 4 x 5*150 Nylon tie
- 2 x 20*220 GEPRC Lipo strap
- 1 x 15*250 GEPRC Lipo strap
- 1 x 2.4g Antenna fixed tube
Recommended：
- Flight Controller：RF/Kiss/F3/F4/F7
- Motor： 2207.5/2305/2306/2407
- ESC：35A-60A
- Propeller：6inch
- Lipo: 4S 1500mAh ~ 6S 1300mAh
Features：
- Super lightweight Freestyle frame
- Beautiful appearance design，durable in crashing
- Quick maintenance Arms and replacement of equipment
- 25mm standoffs for better height and CG relation,Ample space for electronic installation
- Alu6061 Srandoff New , Strengthen the hardness
- There are 30.5*30.5 and 20*20 flight control holes , Stack can fit in the center or the rear.
- High quality 3K twill carbon fiber plate, high precision CNC processing
- YFS screw, 12.9 grade strength, non-slip teeth, anti-rust,Durable steel hardware
Paraméterek
| Beépítési méret | 20x20/30,5x30,5 mm |
| stílus | freestyle |
| Váz formája | H |
| Brand name：GEPRC | |
| Item name：Mark 4-5 | |
| Frame type：H type | |
| Propeller | 5inch |
| Motor to motor：225mm | |
| Size：145*172mm | |
| Weight：102g | |
| Arms plate | 5mm |
| Side plate | 2.5mm |
| Top plate | 2.5mm |
| Bottom plate | 2.5mm |
| Protect plate | 2mm |
