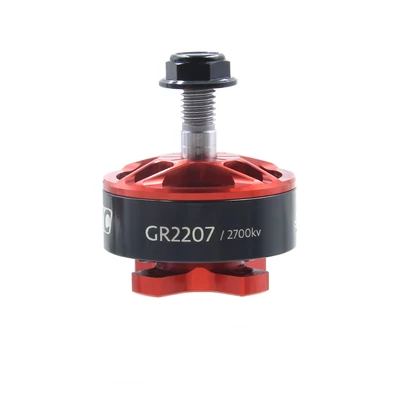

GEP-GR2207 2700KV motor

Ár:

8.790 Ft

Gyártó:
Cikkszám:	GEP-GR2207_2700KV
Kívánságlistára teszem
NSK high-efficiency bearings 0.15mm silicon steel laminations N52H arc magnets Al 7075 CNC 3Kv 2700kv The weight is 32g only

KV érték

Menny.:db

Kosárba rakom

Leírás Paraméterek Csomag tartalma Vélemények

Leírás

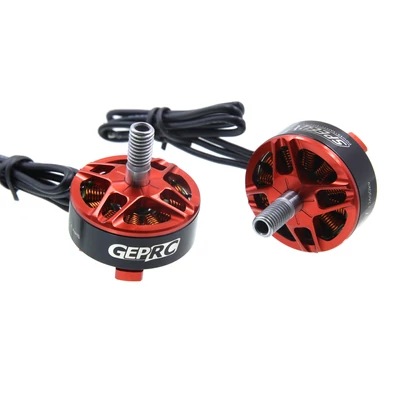

After two months of testing optimization, GEP-GR2207 was finally produced. The exterior still USES the four-sided structure of GR2306, which is durable and beautiful.

GR2207 is made of advanced materials, including NSK bearings, 7075 aluminum, high precision CNC, N52H arc magnets, etc. GR2207 provides 3 kv, which is 1900kv, 2400kv and 2700kv respectively. Each kv can meet different needs. 2700kv is more suitable for racing. In addition, GR2207 also provides two colors, Chinese red and titanium.

Paraméterek

motor állórész átmérője	2207
Támogatott cellaszám	4-6 cella (14.8V-22.2V)
Súly	31 g
Propeller felfogatása	5mm tengely
POPO kompatibilis	nem
KV	2700kv
Configuration	12N14PStator Diamter:22mm
Stator Length	7mm
Shaft Diameter	4mm(Hollow)
*Motor (Dimension(Dia.Len))**	Φ26.7*30.5mm
Idle current(10)@10V(A)	2.8
No.of Cells(Lipo)	4~5S
Max Continuous (Power(W)15S)	1000
Internal Resistance	29mΩ
Max Current(30S)	48A
Max.Effciency Current	(4-8A)>81%
Rotor	N52H arc magnets
Bearings	NSK
Base casing	Al 7075
Wire AWG	20AWG
Weight(g)	31
