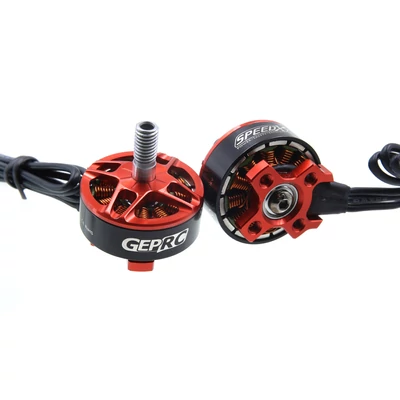

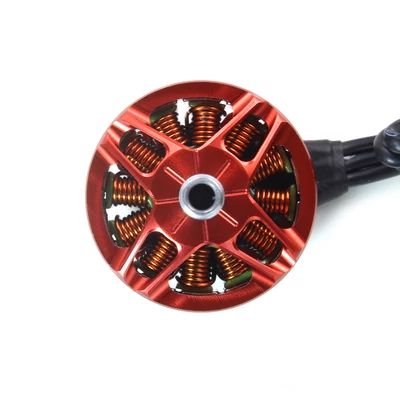

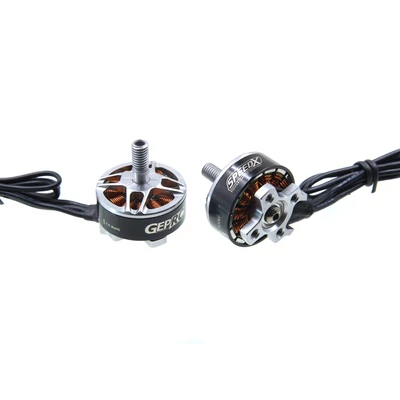

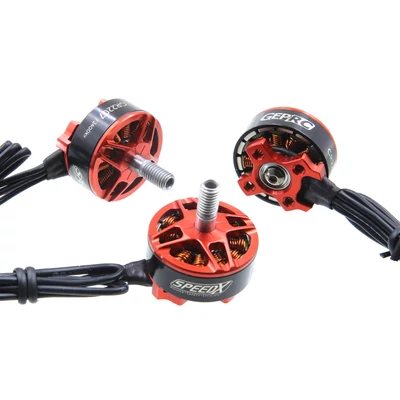

GEP-GR2207 1900KV motor

Ár:
8.790 Ft
Gyártó:
Cikkszám: GEP-GR2207_1900KV
  • NSK high-efficiency bearings
  • 0.15mm silicon steel laminations
  • N52H arc magnets
  • Al 7075 CNC
  • 1900KV
  • The weight is 32g only
KV érték
Menny.:db

Leírás

After two months of testing optimization, GEP-GR2207 was finally produced. The exterior still USES the four-sided structure of GR2306, which is durable and beautiful.

GR2207 is made of advanced materials, including NSK bearings, 7075 aluminum, high precision CNC, N52H arc magnets, etc. 1900kv is efficient for long range flight. Chinese red and titanium.

Paraméterek

motor állórész átmérője 2207
Támogatott cellaszám 4-6 cella (14.8V-22.2V)
Súly 31 g
Propeller felfogatása 5mm tengely
POPO kompatibilisquestion_mark nem
KV 1900kv
Configuration 12N14P
Stator Diamter 22mm
Stator Length 7mm
Shaft Diameter 4mm(Hollow)
Motor (Dimension(Dia.*Len)) Φ26.7*30.5mm
Idle current(10)@10V(A) 1.8
No.of Cells(Lipo) 4~6S
Max Continuous (Power(W)15S) 900
Internal Resistance 48mΩ
Max Current(30S) 40A
Max.Effciency Current (3-6A)>83%
Rotor N52H arc magnets
Bearings NSK
Base casing Al 7075
Wire AWG 20AWG
Weight(g) 31

Csomag tartalma

1x GEPRC GR2207  Motor
1x GEPRC M5 Aluminum Lock Nut
4x M3x6 Button head screws
4x M3x7 Button head screws
4x M3x8 Button head screws
