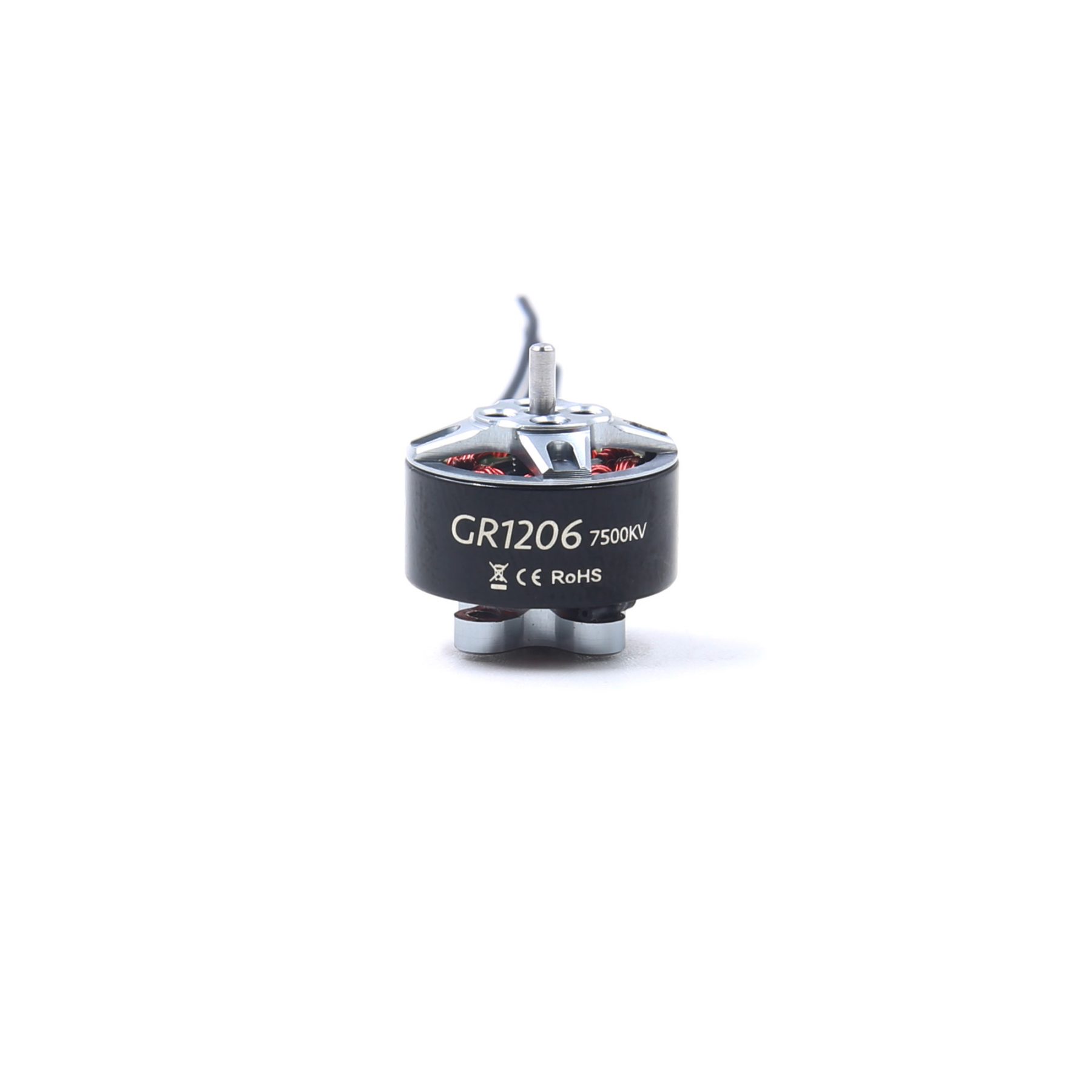

GEP-GR1206 7500KV motor

5.990 Ft
Cikkszám: GEP-GR1206_7500KV
The Micro-FPV quads gives players a lot of fun, but the power is also being upgraded. The 7500KV is recommended with 2.5 inch propeller and 3S battery.
KV érték


The new 1206 brushless motor has a stronger power output
Lightweight base design, no change in weight reduction intensity
The upper cover is specially designed for efficient heat dissipation and strong structure
Precision CNC processing, aviation aluminum 7075 aluminum, high precision, high strength
N52H magnet is adopted to ensure torque and high temperature resistance without losing magnetism
NMB520 bearing of Japan ensures low vibration and low noise when the motor runs at high speed
Excellent heat dissipation structure design and 20% reduction of temperature of the same type of motor
180 ℃high temperature resistant enameled wire
Reliable magnetic circuit optimization, smoother start
The weight is only 8.3g (including wire)


motor állórész átmérője 1206
Támogatott cellaszám 2-4 cellla (7.4V-14.8V)
Súly 8,3 g
Propeller felfogatása 1.5mm tengely+2*M2 csavar
POPO kompatibilisquestion_mark nem
KV 7500KV
Configuration 9N12P
Stator Diamter 12mm
Stator Length 6mm
Shaft Diameter 1.5mm
Motor (Dimension(Dia.*Len)) Φ8*17mm
of Cells(Lipo) 2~4S
Internal Resistance 120mΩ
Max Current(180S) 15A
Rotor N52H arc magnets
Bearings NMB 520
Base casing Al 7075
Wire AWG 28AWG
Weight(g) 8.3g

Csomag tartalma

1x GEPRC GR1206 Motors
4x M3x4 Button head screws
4x M3x5 Button head screws
4x M3x7 Button head screws
